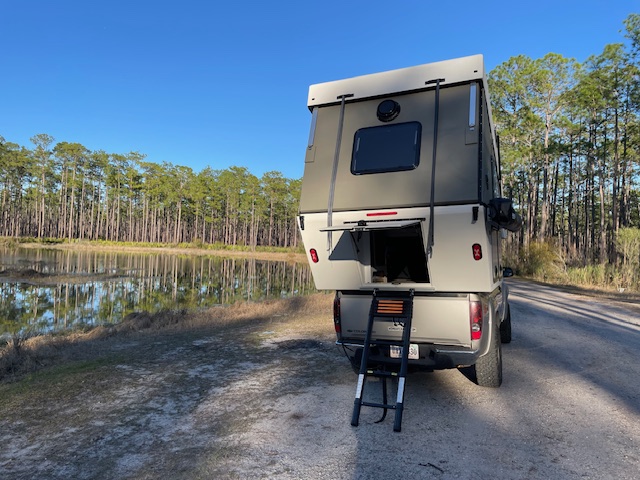

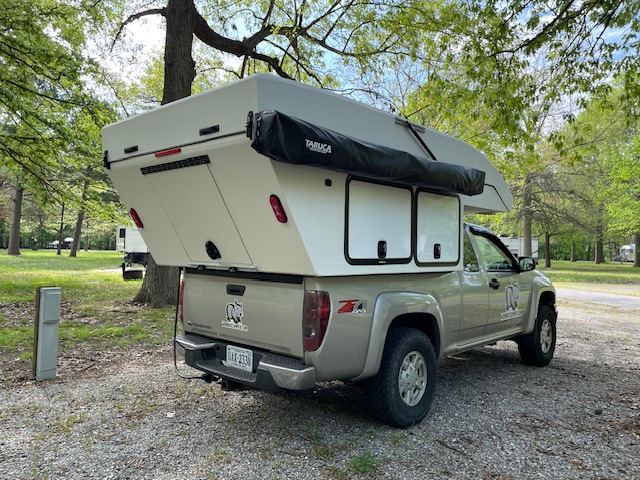

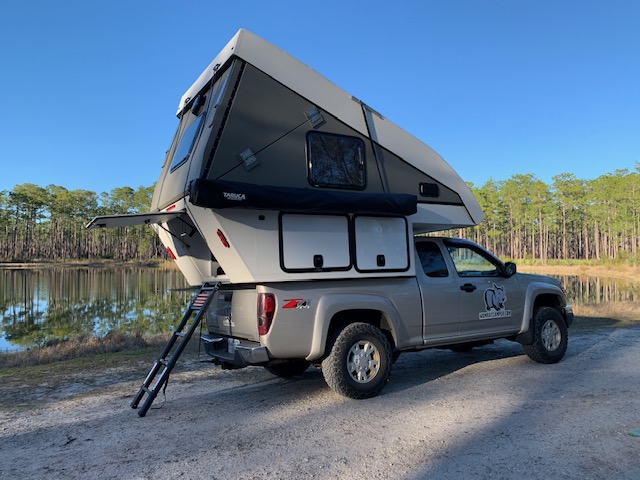

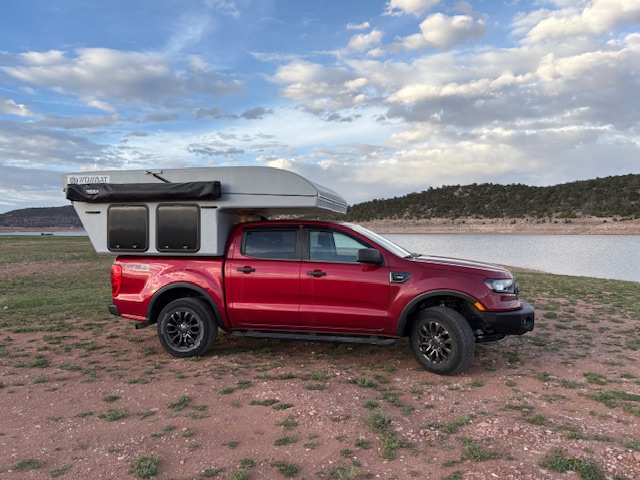

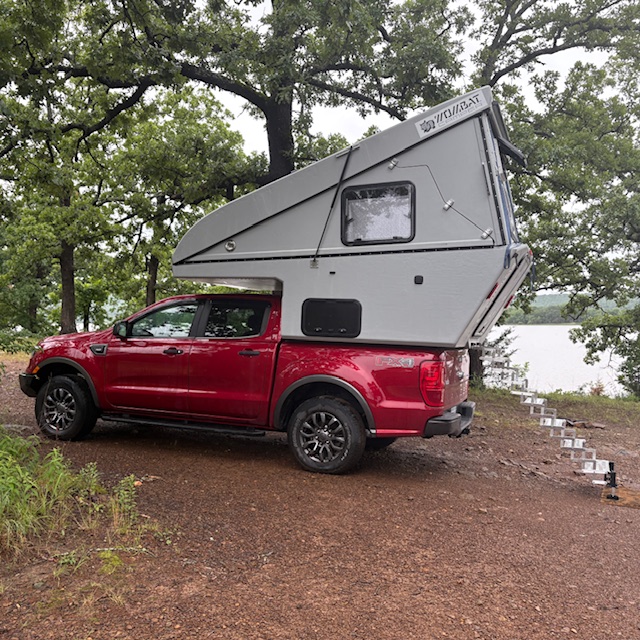

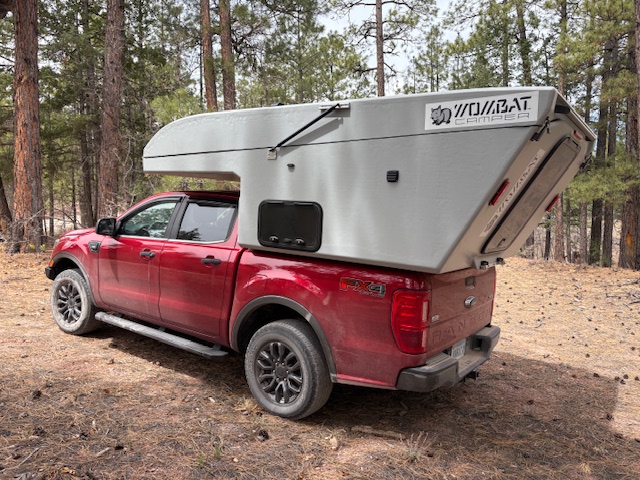

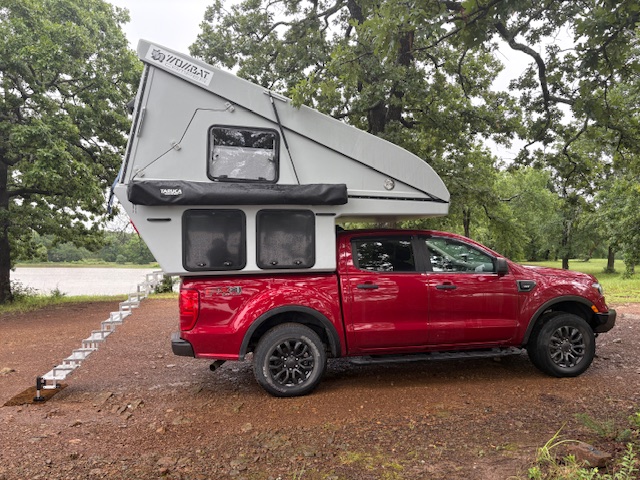

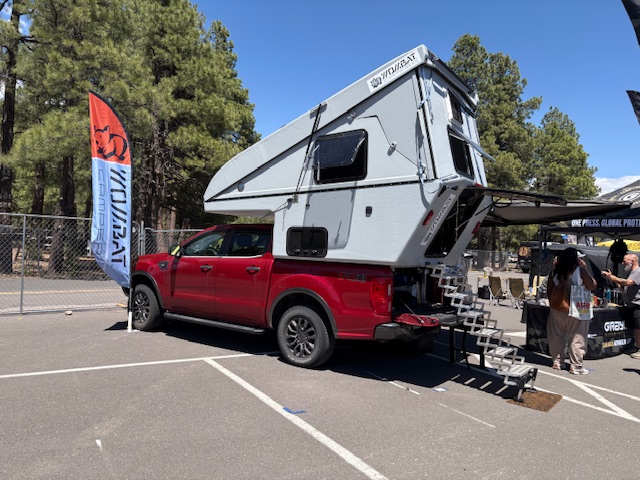

Preproduction model shown. Some specs may vary from those pictured.

Your Traveling Companion. Born from our Australian Adventures.
Proudly made in the foothills of Virginia’s Blue Ridge Mountains.

Now accepting orders for 2023.
Email us for more information:
contact@wombatcamper.com

Features & Specifications

Key Dimensions
Interior: Length – 12’10”, width – 6’1”, height – 6’4”
Exterior: Length – 18′, width – 6’4”, height – 8’10” (w/ 31” tires)
Departure angle – 30°
Ground clearance – 18” (w/ 31” tires)
Dry weight – 2,600 lbs (not including options)
Gross vehicle mass – 3,500 lbs or 3,700 lbs*
Tire size – 31”-34”*
Fresh water – 45 gal
Grey water – 25 gal
Internal storage volume – 40.0 cu ft
External storage volume – 19.4 cu ft
Kitchen storage volume – 5.5 cu ft
Total storage volume – 64.9 cu ft

Move

  • Powdercoated heavy duty steel chassis designed to meet Australian Design Rules
  • Integrated rock sliders and rear recovery points
  • Cruisemaster DO35 3-axis hitch mount
  • Ark Extreme Offroad trailer jack
  • Ark rear corner steadies
  • Aluminum entry steps
  • Cruisemaster independent suspension with coil springs (optional upgrade to airbags)*
  • 10” electric brakes with independently controlled hand brakes
  • Mud flaps
  • Full-sized spare tire mounted to rear
  • Rear hitch receiver for bike carrier or other accessories
  • Exterior flood lights and rock lights controlled via Redarc interior touch screen or smart phone
  • 2 vented wet storage boxes each large enough for a 20 lb propane tank and a jerry can
  • External storage volume of 19.4 cu ft

Relax

  • Walls, floor, and roof are a 1.5” thick composite panel with fiberglass skin and rigid core
  • Thermally efficient and hard-sided for true 4 season camping and bear country
  • Roof is a single fiberglass piece with no seams
  • Thule 10’x8’ fully retractable awning (180° awning available)*
  • Tern Overland double-glazed windows on all 4 sides with integrated screens and blackout blinds
  • Front sky window located over the bed for night time star gazing
  • True queen size bed (60”x80”) with 4.5” mattress with latex or memory foam options*
  • Dinette seating for up to 4 with adjustable Lagun table mount
  • 5,000 BTU air conditioner
  • MaxxFan deluxe roof vent with 10 speed fan, thermostat, and remote
  • MaxxFan dome roof vent with fan and light in bathroom
  • Interior LED lights that are individually controlled
  • Reading lights with USB sockets at bed head
  • Rear storage locker with access from inside and outside
  • Internal storage volume of 40.0 cu ft

Cook

  • Kitchen area is an integrated modular system that is quick to deploy and accessible inside and out
  • Pullout with 2 collapsible sinks and hot and cold running water
  • Pullout with 2 induction cooktops accessible inside and outside
  • Table with 2 height adjustments
  • Fridge/freezer* accessible inside and outside
  • 4 storage compartments with a total volume of 5.5 cu ft accessible inside and outside
  • Exterior kitchen prep space of 107”
  • Interior kitchen counter 46.5” long with stainless steel sink and hot and cold running water

Play and Connect

  • Redarc RedVision TVMS with Manager 30 (made in Australia)
  • Control and monitor multiple devices from the RedVision 4.3” display unit or mobile app via Bluetooth
  • Redarc Manager 30 charges and maintains batteries with AC, DC, and solar inputs
  • Lithium battery (upgrades available)*
  • 2 solar panels @ 180 W, total capacity 360 W (upgrades available)*
  • 1500 W inverter (upgrade available)*
  • 30 amp shore connection
  • 110 V, USB, and DC sockets located throughout the camper
  • Exterior 110 V and USB socket
  • Fusion marine stereo system with Bluetooth
  • TV and coax cable ready*

Refresh

  • All water tanks, waterlines, and gate valves located inside thermal envelope for 4 season camping
  • Fresh water – 45 gal, grey water – 25 gal
  • Elwell Timberline diesel water heater and furnace (diesel and electric)
  • SeeLevel tank monitors display level in percent
  • Wet bathroom with shower and toilet*
  • Adjustable bathroom door and wall provides more flexible space
  • Exterior hot and cold water connection
  • Water distribution panel with brass fittings
  • Water system valves and equipment grouped together in a single compartment
  • Integrated water management system with shore/city fill, siphon fill, internal pressurize, and winterize
  • Water filtration system*
